Physico-Chemical Studies of Tris (adamantan-1-aminium) Hexachlorostannate (IV) Chloride Monohydrate

Journal of Research & Developments in Chemistry

Download PDF  | Download for mobile

Mahjouba Ben Nasr1, Mohamed Lahbib Mrad2, Frédéric Lefèbvre3 and Chérif Ben Nasr4

1,2,4 Laboratoire de Chimie des Matériaux, Faculté des Sciences de Bizerte , Tunisia

3 Laboratoire de Chimie Organométallique de Surface (LCOMS), Ecole Supérieure de Chimie Physique Electronique, Villeurbanne,  Cedex, France

Volume 2014 (2014), Article ID 626589, Journal of Research & Developments in Chemistry, 12 pages, DOI: 10.5171/2014.626589

Received date : 4 March 2014; Accepted date : 9 April 2014; Published date : 7 August 2014

Academic editor: Josefina Pons Picart

Cite this Article as: Mahjouba Ben Nasr, Mohamed Lahbib Mrad, Frédéric Lefèbvre and Chérif Ben Nasr (2014)," Physico-Chemical Studies of Tris (adamantan-1-aminium) Hexachlorostannate (IV) Chloride Monohydrate ", Journal of Research & Developments in Chemistry, Vol. 2014 (2014), Article ID 626589, DOI: 10.5171/2014.626589

Copyright © 2014. Mahjouba Ben Nasr, Mohamed Lahbib Mrad, Frédéric Lefèbvre and Chérif Ben Nasr. Distributed under Creative Commons CC-BY 3.0

Abstract

The structural characteristics of organic ammonium salts of the hexahalogenostannates (IV) with a general formula (R-NH3)3SnX6 have not yet been studied extensively. In the course of investigating these types of materials, the title compound, a double salt of adamantan-1-aminium chloride and hexahalogenostannate (IV), with the formula (C10H18N)3[SnCl6]Cl-H2O, was crystallized. Its asymmetric unit contains three independent cations of protonated adamantan-1-amine, one chloride anion, one Hexachlorostannate (IV) ion and a hydrate water molecule. The atomic arrangement can be described as inorganic SnCl62- units isolated from each other by the organic cations, the chloride anions and the co-crystallized water molecules. The compound exhibits bifurcated and simple hydrogen-bonding interactions between the ammonium groups, the water molecules and the chlorine atoms, with little variation in the hydrogen-bonding interactions. The 119Sn, 13C and 15N CP-MAS NMR spectra are in agreement with the X-ray structure.

Keywords: Tin (IV) compound, X-ray diffraction, IR spectroscopy, CP-MAS NMR

Introduction

Organic—inorganic hybrid materials with the formula (R-NH3)2SnX4, where X = F, Cl, Br or I have been investigated structurally because of their interesting magnetic and electronic properties [1-4]. In contrast, the structural characteristics of compounds with the formula (R-NH3)3SnX6 have not been studied extensively. In the course of investigating compounds with this formula, the title compound, displaying a combination of anions and cations, was crystallized. Tris (adamantan-1-aminium) Hexachlorostannate (IV) chloride monohydrate is a double salt of adamantan-1-aminium chloride and hexahalogenostannate (IV), with the formula (C10H18N)3[SnCl6]Cl-H2O.

626589-fig-1


626589-fig-2

Experimental

Chemical preparation

The title compound was prepared according to the following chemical reaction:
3 C10H17N + SnCl4 + H2O + 3HCl  —> (C10H18N)3[SnCl6]Cl-H2O
 by the slow evaporation of an aqueous solution of  adamantan-1-amine, tin(IV) chloride dihydrate and hydrochloride acid in 3 : 1 : 3 molar ratio. Colourless prismatic crystals were obtained after one week (yield 65 %). The crystals are stable for months under normal conditions of temperature and humidity. Anal. Calc: C, 42.77; H, 6.41; N, 4.99; Found: C, 42.56; H, 6.57; N, 5.23 %.

Investigation techniques

The characterization of this coordination compound was carried out using X-ray diffraction, solid state NMR and IR spectroscopy.

X-ray single crystal structural analysis

The intensity data were measured at 100 K on a Bruker AXS SMART APEX CCD diffractometer using graphite-monochromated MoK radiation with the omega scan technique. The absorption corrections were carried out using the Apex2 software [5]. The structure was solved by direct methods using SHELXS and refined by full matrix least squares against F2 with all reflections using SHELXL [6] and SHELXLE [7]. The H-atoms of the water molecules were located from different Fourier maps, while the H-atoms of the ammonium groups were placed in geometrically calculated positions. The drawings were made with Diamond [8]. Crystal data and experimental parameters used for the intensity data collection are summarized in Table 1. The low fraction of observed reflexions is due to the low-quality crystal.

Physical measurements

The NMR spectra were recorded on a solid-state high-resolution Bruker DSX-300 spectrometer operating at 75.49 MHz for 13C and 30.30 MHz for 15N. The 119Sn NMR spectrum was recorded on a Bruker DRX500 AVANCE spectrometer operating at 186.5 MHz with a classical 4 mm probehead allowing spinning rates up to 10 kHz. 13C, 15N and 119Sn NMR chemical shifts are given relative to tetramethylsilane, nitromethane and Me4Sn, respectively (precision 0.5 ppm). The spectra were recorded by the use of cross-polarization (CP) from protons (contact time 5 ms) and MAS. The delay between two successive scans was optimized to ensure a full relaxation of the proton. The IR spectrum was recorded at r. t with a “Perkin-Elmer FTIR” spectrophotometer 1000.

Results and Discussion

X-ray diffraction study

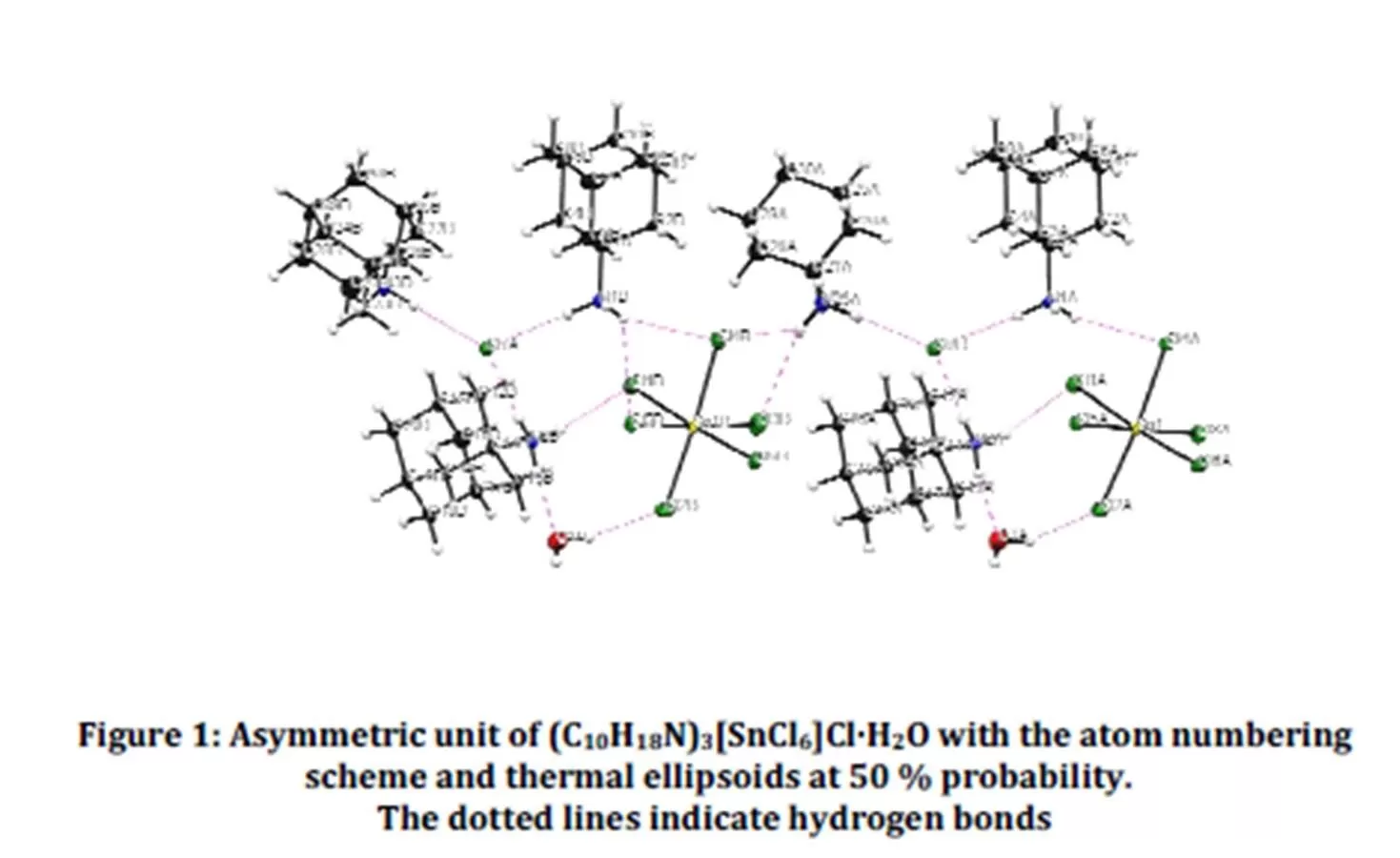

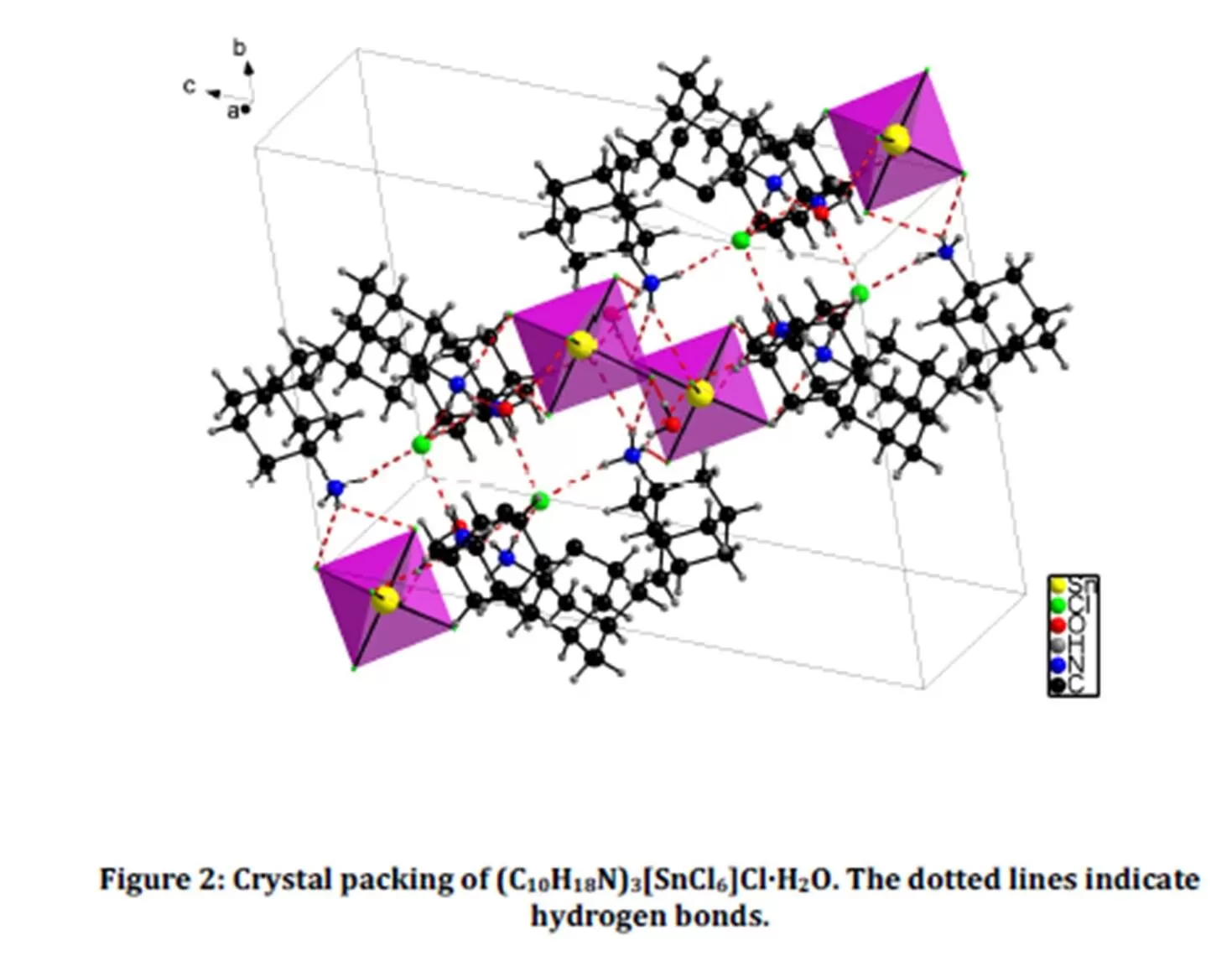

The asymmetric unit of the title compound (Fig. 1) contains six independent adamantan-1-aminium cations, two chloride anions, two Hexachlorostannate (IV) ions and two water molecules. The Sn atom is six-fold coordinated by chloride ions, forming an octahedral arrangement. Fig. 2 shows that the atomic arrangement of the title hybrid compound can be described as inorganic SnCl62- units isolated from each other by the organic cations, the chloride anions and the co-crystallized water molecules. Multiple hydrogen bonds connect the different entities of the compound to form an infinite three-dimensional network. Fig.2 shows that the structure cohesion is ensured by four types of hydrogen bonds, viz. cation-hexachlorotin anion, cation-chloride anion, cation-water and water-hexachlorotin anion. Atoms H3A3, H1B3  H3A1 and H3B2 of the ammonium groups form bifurcated hydrogen bonds to the acceptor atoms



Cl6B, Cl3B, Cl4B, Cl3B, Cl4B, Cl5B, Cl6A and Cl5A (Table 2). The H…Cl distances of these hydrogen bonds, varying between 2.57 and 2.92 Šare longer than the ones of simple hydrogen bonds, ranging from 2.27 and 2.56 Å.

Previous studies have shown that, in the [SnCl6]2- anion, the Sn-Cl bond lengths and Cl-Sn-Cl bond angles are not equal, but vary with the environment around the Cl atom [9]. In this complex, the Sn-Cl bond lengths vary between 2.3791(14) and 2.4694(14) Šand the Cl-Sn-Cl bond angles range from 88.08(5) to 93.65(5)°, with an average value of 89.97° (Table 3). Owing to these differences in the geometric parameters, the [SnCl6]2- anion has a slightly distorted octahedral stereochemistry [10].

The examination of the geometric features of the organic entity shows that the organic molecule exhibits a regular spatial configuration with C-C and C-N distances and C-C-C and C-C-N angles quite similar to those found in other adamantan-1-aminium compounds [11].

NMR spectroscopy

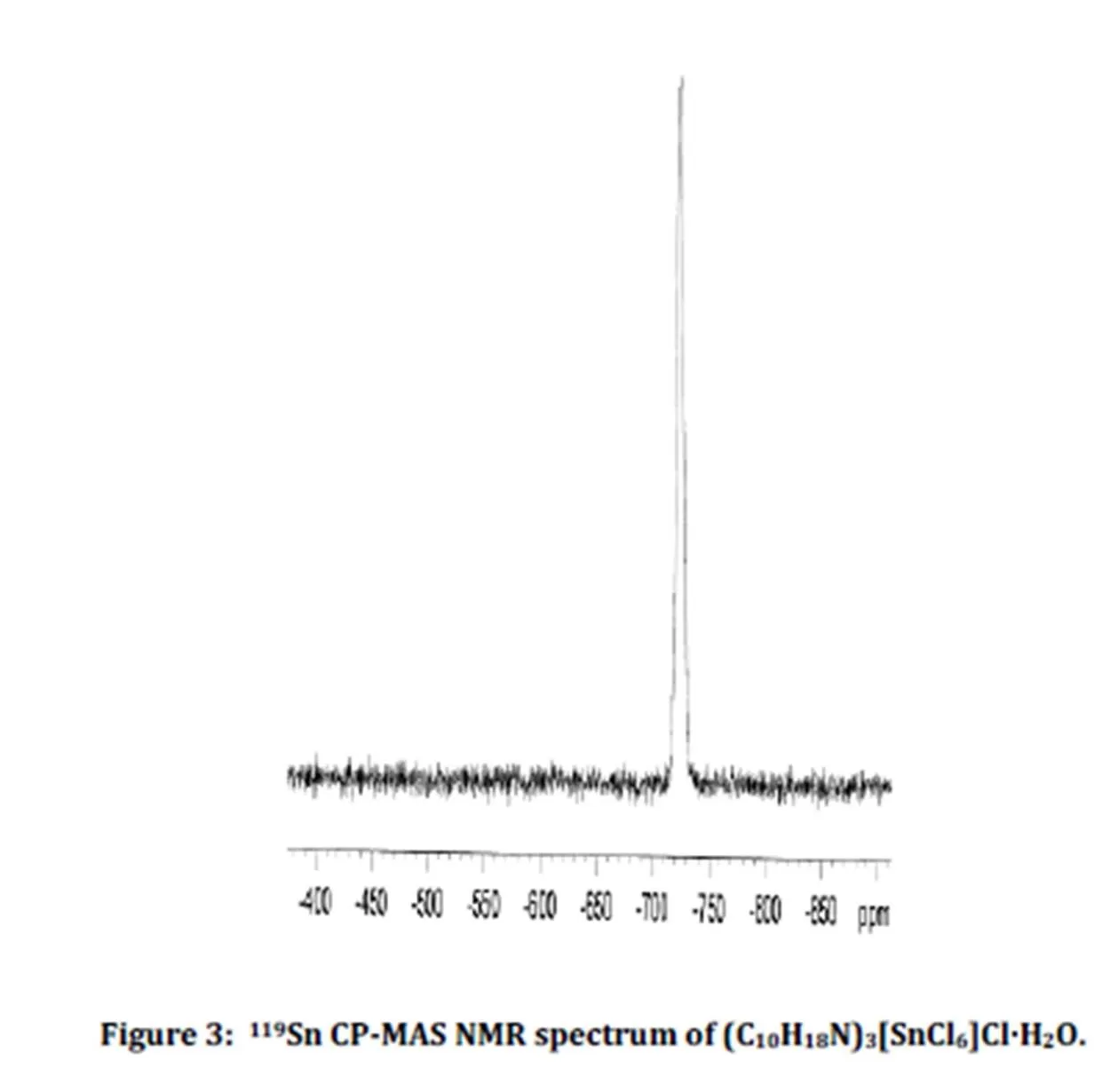

The 119Sn CP-MAS NMR spectrum of crystalline is shown in Fig. 3. It exhibits a single resonance peak at -724 ppm relatively large due to the coupling of the tin (IV) cation with the chlorine atoms. This chemical shift value agrees with those corresponding to the hexachlorostannate (IV) compounds [12]. The single observed peak is in agreement with the presence of only one tin site.

 626589-fig-3

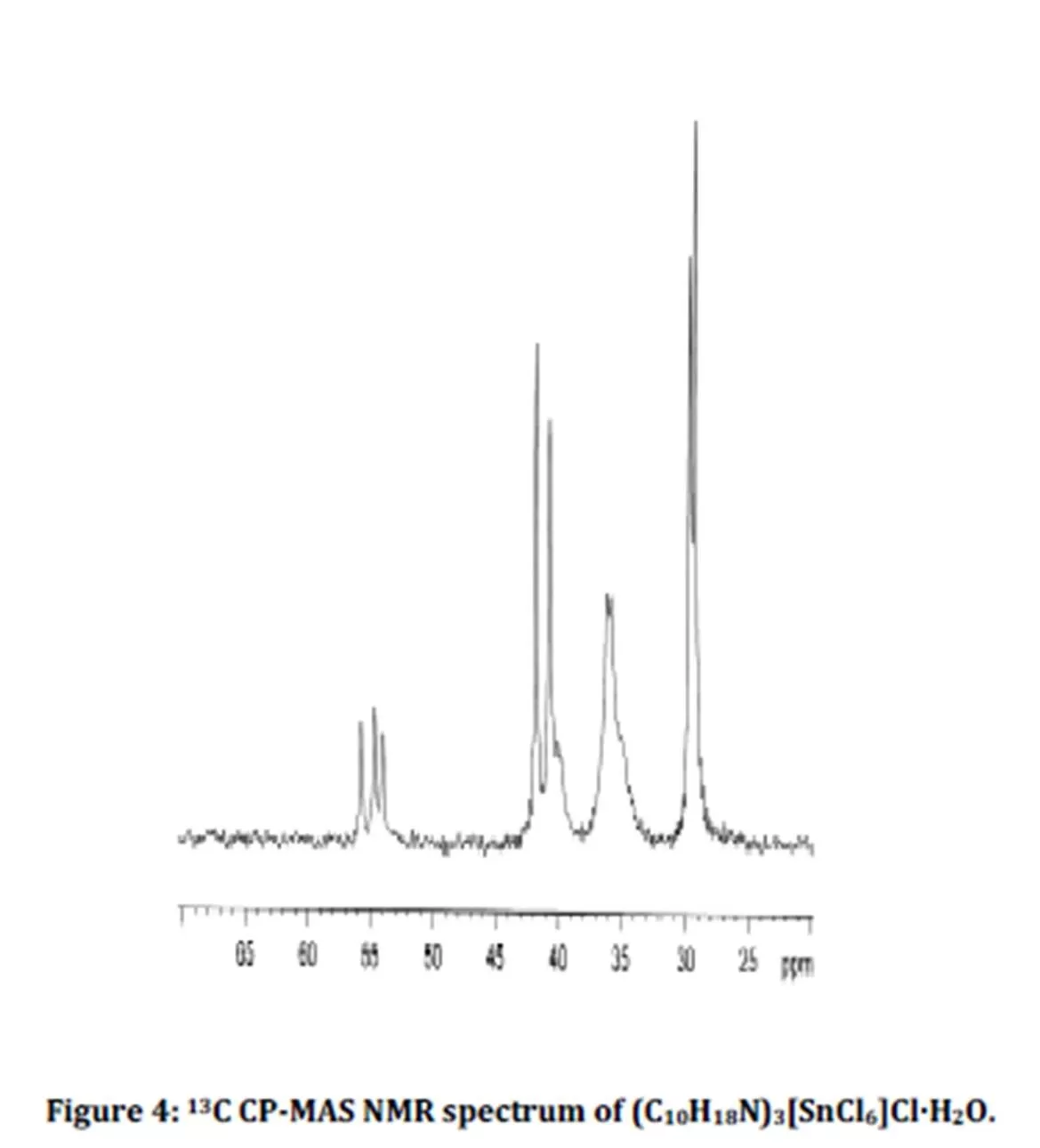

The 13C CP-MAS NMR spectrum of the title compound is shown on Fig. 4. A key point of this spectrum is the presence of three resonances, at 54.1, 55.1 and 55.9 ppm, for the most deshielded signal, corresponding to the carbon atom directly bonded to the ammonium group. These chemical shift values agree with those of literature [13]. These three resonances also confirm the presence of three organic moieties in the asymmetric unit of the compound, in agreement with the X-ray diffraction data.

626589-fig-4

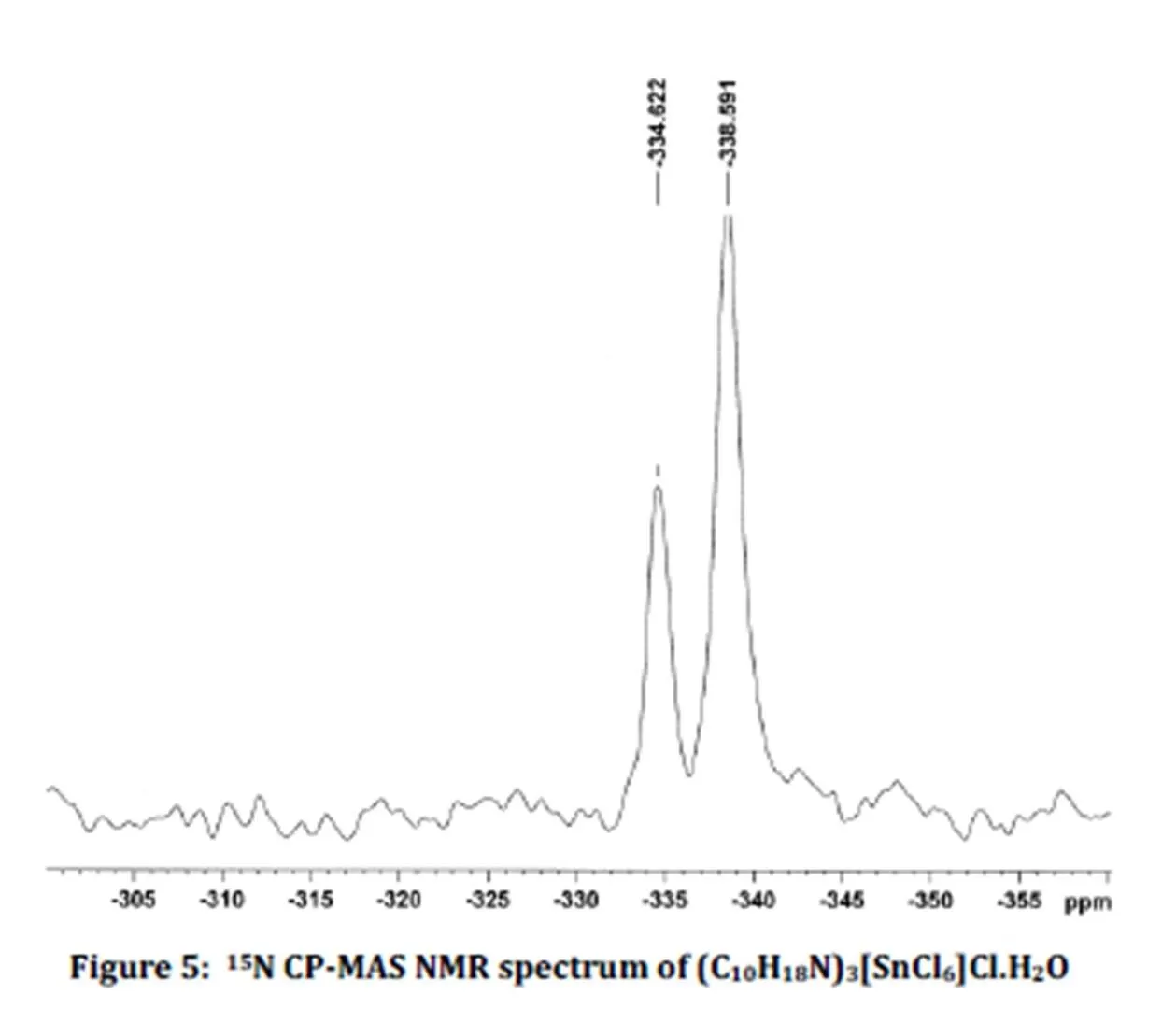

Fig. 5 shows the 15N CP-MAS NMR spectrum of the title compound. This spectrum exhibits two resonance peaks at -338.6 and -334.6 ppm, with 1: 2 relative intensities. The X-ray structure shows that there are three inequivalent nitrogen atoms in the unit cell which is in agreement with the NMR results if one assumes that two inequivalent nitrogen atoms resonate at quite the same value. These chemical shift values agree with those of the nitrogen atom of R-NH3+groups in organic compounds [14].

626589-fig-5

IR spectroscopy

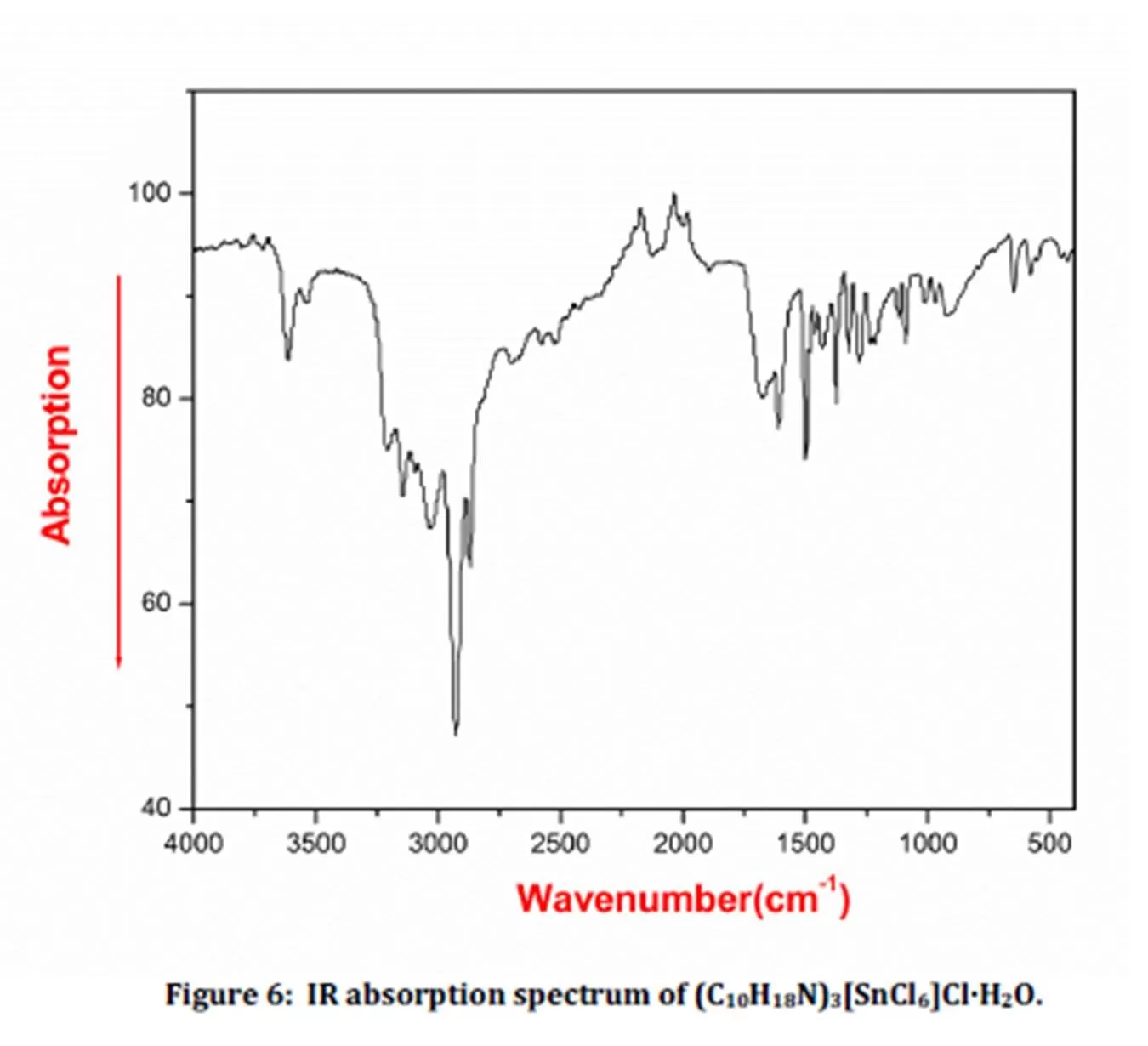

The IR spectrum of crystalline (C10H18N)3[SnCl6]Cl-H2O is shown in Fig. 6. The vibrational modes of this compound were elicited by the comparison of the IR spectra of similar complexes [15, 16]. The broad bands between 3600 and 2500 cm-1 correspond to the stretching vibrations of (C-H), (N-H) and (O-H) groups [17]. The bands in the 1650-1100 cm-1 region can be attributed to the bending vibrations of the (N-H) and (O-H) groups and to the stretching and bonding modes (C-C), (C-N) and (C-H) [18, 19]. The bands between 1000 and 600 cm-1 are assigned to the out of plane bending modes γ(C-H), γ(C-C) and γ(N-H) [20].

626589-fig-6


Conclusion

A new Sn(IV) complex, (C10H18N)3[SnCl6]Cl-H2O, was synthesized in an aqueous medium and characterized by various physico-chemical methods. On the structural level, the metal centers have 6-coordinated octahedral geometry. Crystal packing is stabilized by intermolecular N-H…Cl, N-H…O and O-H…Cl hydrogen bonds that connect the different entities into a three dimensional lattice. 119Sn, 13C and 15N CP-MAS NMR spectra are in agreement with the X-ray structure.
