The Study on the Photocatalytic Degradation of Nicotine

Journal of Research & Developments in Chemistry

Download PDF  | Download for mobile

Ewa Adamek1, Maciej Goniewicz2, Wojciech Baran3 and Andrzej Sobczak4

1,3 Medical University of Silesia, Department of General and Analytical Chemistry, Sosnowiec, Poland

2Oncology Department of Health Behavior Division of Cancer Prevention and Population Sciences, Roswell Park Cancer Institute Elm & Carlton Streets, Buffalo, New York, USA

4Institute of Occupational Medicine and Environmental Health, Kościelna, Sosnowiec, Poland

Volume 2015 (2015), Article ID 157781, Journal of Research & Developments in Chemistry, 5 pages, DOI: 10.5171/2015.157781

Received date : 30 April 2014; Accepted date : 12 June 2014; Published date : 17 April 2015

Academic editor: Hildegard M. Schuller

Cite this Article as: Ewa Adamek, Maciej Goniewicz, Wojciech Baran and Andrzej Sobczak (2015), " The Study on the Photocatalytic Degradation of Nicotine", Journal of Research & Developments in Chemistry, Vol. 2015 (2015), Article ID 157781, DOI: 10.5171/2015.157781

Copyright © 2015. Ewa Adamek, Maciej Goniewicz, Wojciech Baran and Andrzej Sobczak. Distributed under Creative Commons CC-BY 4.0

Abstract

Nicotine belongs to a group of compounds being specific toxic anthropogenic contaminants. Highly carcinogenic nitrozamines are one of the possible products of photocatalytic oxidation of nicotine. The main objective of the present study was to investigate the photocatalytic degradation of nicotine and the intentification of 4-(methylnitrosamino)-1-(3-pyridyl)-1-butanone and N-nitroso-nornicotine among their degradation products.The experiment was carried out in an aqueous medium, in the presence of TiO2 suspension (0.4 g/l). Samples containing nicotine (0.1 mmol/l) or nicotine and NO2- ions were irradiated with UVa radiation (max=366 nm). Photocatalytic degradation products were identified by using LC-MS/MS method. It was found that during UVa-irradiation of samples with TiO2 the decomposition of nicotine was observed. It can be noted that under investigated conditions the formation of nitrosamines was not observed in any samples.

Keywords: nicotine, nitrosamine, degradation, photocatalysis, TiO2

Introduction

Nicotine belongs to the specific, toxic pollutants of the air. Its presence is unavoidable in air purification systems in rooms where smoking is permitted. Tar, accompanying nicotine causes rapid filling the pores used in such sorbents or filters. Therefore, the use of degradation processes of organic pollutants in such systems seems to be right and proper. According to Bezak-Mazur and Adamczyk (2010), the simultaneous use of sorbents and advanced oxidation processes (AOPs) increases the total efficiency of degradation process and significantly extends the life of the sorbents. One of the new methods which can be used for destructive removal of contaminants from water and air is the photocatalytic degradation process. It bases mainly on the oxidation of pollutants using hydroxyl radicals (HO-) generated by photoexcitation of photocatalyst particles (Carp et al., 2004, Fujishima et al., 2008, Ohtani, 2010).

These radicals can be used to break down contaminants that are both hazardous and resistant to biodegradation and turn them into less toxic substances (Baran et al. 2006). However, the oxygen compounds of nitrogen (NOx) may be also generated during the photocatalytic process in the presence of air. As a result, they can be converted to strongly carcinogenic nitrosamines in the presence of nicotine (Fig. 1) (Hecht et al., 1978, Hecht et al., 1993, Sleiman et al., 2010).

157781-fig-1

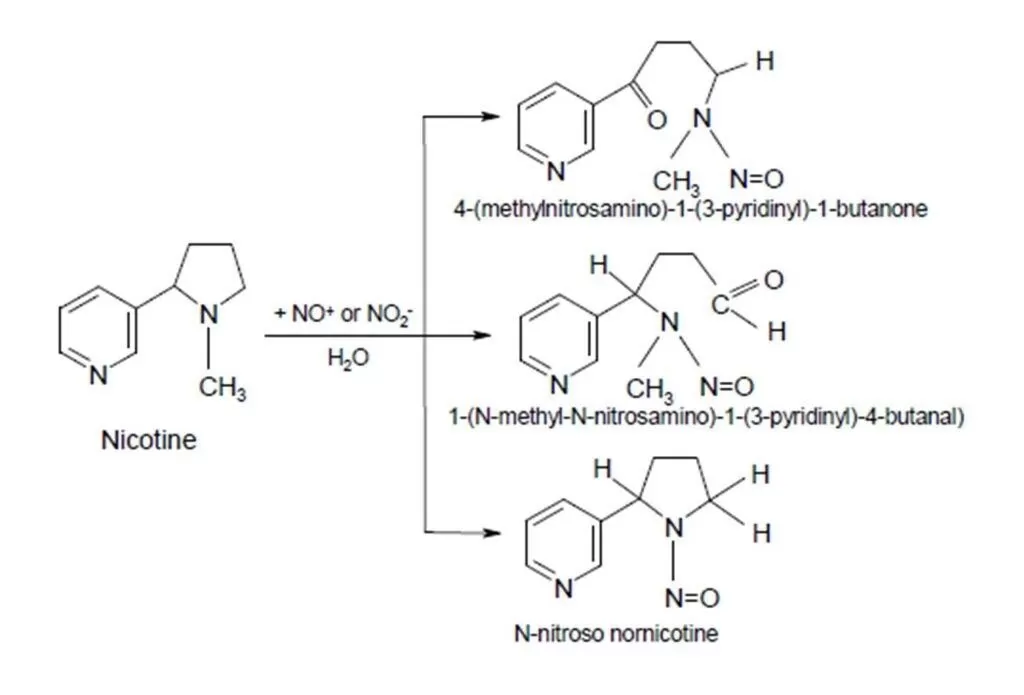

Figure 1: Nitrosamines formed during the conversion of nicotine with oxygen compounds of nitrogen (NOx)


The possible formation of nitrosamines during the photocatalytic process can undermine the desirability of its application in air purification systems. The aim of our work was to study the photocatalytic degradation of nicotine and to try to identify 4-(methylnitrosamino)-1-(3-pyridyl)-1-butanone and N-nitroso-nornicotine among its photodegradation products.

Materials and Methods

The working solutions were prepared in the form of aqueous solutions of nicotine (0.1 mmol/l) to which 0.4 g/l of solid TiO2 (anatase powder, Riedel de Haën) was added. Additionally, the solid NaNO2 (Sigma Aldrich; assay ≥ 99%) was added to one sample (0.1 mmol/l). The photocatalytic process was carried out in open, glass and flat vessels. The prepared mixtures were irradiated by fluorescent lamps (Philips Actinic BL TL40W/10) with a wavelength maximum (λ) at 366nm. Samples were magnetically stirred and had a free contact with atmospheric air. At predetermined sampling time intervals (before- and during irradiation), the aliquots (between 1 and 2 ml) of mixtures were collected and centrifuged (20 min, 4000 RPM). All samples were analyzed by liquid chromatography (Agilent 1200 HPLC) equipped with HSF5 column (4.5×150 mm, 5μm particle size, Supelco) and coupled with quadrupole mass spectrometer (TSQ Quantum Ultra triple quadrupole mass-spectrometer stage, Thermo-Finnigan, San Jose, CA). The elution was performed at 0.9 ml/min flow rate using the gradient mode elution. The mobile phase was a mixture of methanol (25-100%) and an aqueous solution of ammonium formate (10 mmol/l). The MS/MS detector was operated in the system for automatic detection of the investigated compounds. The following mass-to-charge (m/z) ratios were used for detection: 178 and 148 for 4-(methylnitrosamino)-1-(3-pyridyl)-1-butanone and 208 and 122 for N-nitroso-nornicotine, at collision energy 8 and 12 eV, respectively.

Results and Discussion

The photocatalytic degradation process of nicotine was carried out in aqueous solution rather than in a gas. Such a procedure should reduce the volatility of formed intermediates and increase the possibility of their retention in the reaction medium. It was found that during UV-a irradiation the concentration of nicotine was reduced. This fact confirms its degradation under investigated conditions. The dynamics of the process is shown in Fig. 2. It proceeded much faster in solutions without NaNO2 because nitrite ions, having reducing properties, inhibit the photocatalytic process (Baran et al., 2003).

157781-fig-2

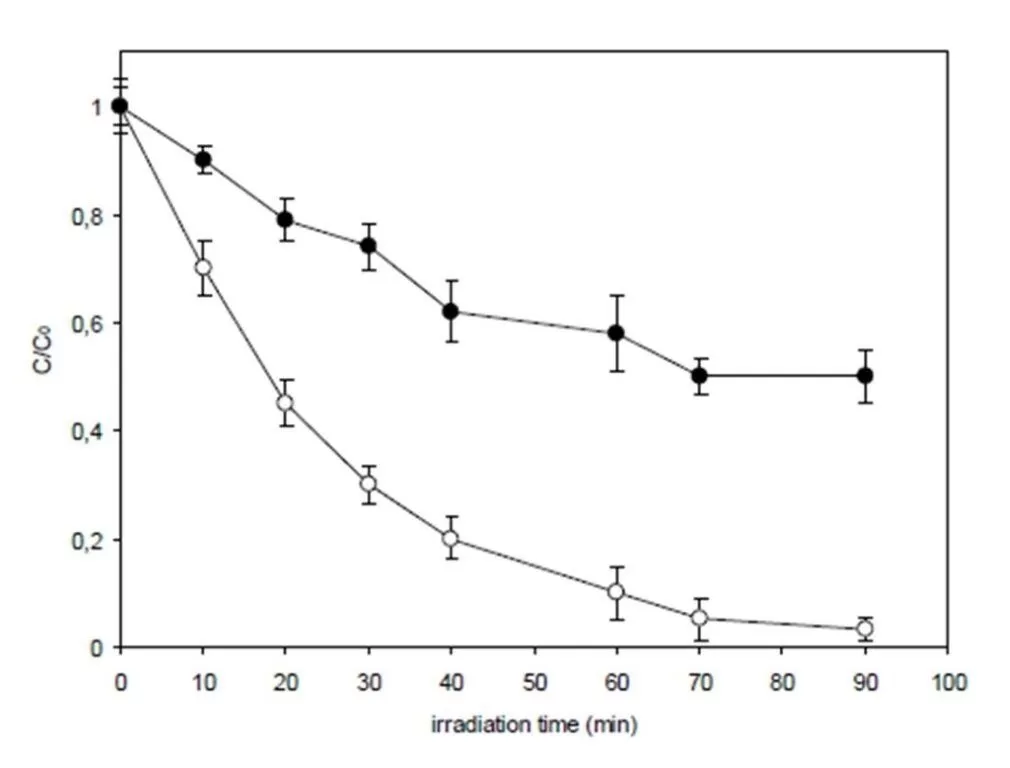

Figure 2: The dynamics of nicotine degradation (Co 0.1 mmol/l) during photocatalytic reactions: () with TiO2 (0.4 g/l); () with TiO2 (0.4 g/l) and NaNO2 (0.1 mmol/l); error bars represent standard deviations from 3 replicates


In order to assess the possibility of nitrosamines formation during photocatalytic degradation of nicotine, the comparison of a mass spectrum of the initial nicotine solution (after adding the photocatalyst but before UV-a irradiation, Fig. 3a) and the spectra of nicotine products (after photocatalytic degradation) was carried out.

157781-fig-3

Figure 3: The MS/MS spectrum: (a) of the initial nicotine solution, (b) of sample containing products of photocatalytic degradation of nicotine, in the presence of TiO2 and NO2- ions, (c) of products of nicotine photodegradation in the presence of TiO2


It was stated that the compared spectra (Figs. 3a and 3b) do not show significant differences (Adamek et al., 2013). The reason for this is a low level of nicotine degradation. However, it should be noted that there are no peaks corresponding to the two investigated nitrosamines (m/z 148 and 122) in reaction products. It may indicate that 4-(methylnitrosamino)-1-(3-pyridyl)-1-butanone and N-nitroso-nornicotine will not form during the photocatalytic degradation of nicotine in the presence of nitrite ions and possible other NOx.

On the other hand, oxygen compounds of nitrogen may also be formed during the photocatalytic degradation of organic compounds containing nitrogen(s) in the molecules (Carp et al., 2004, Fujishima et al., 2008, Ohtani, 2010). In this case, the formation of nitrosamines is also possible but only at a higher level of nicotine conversion. Figure 3c shows a mass spectrum of nicotine solution UVa-irradiated for 60 min in the presence of TiO2 only. It was stated that after that time, nearly 90% of nicotine was degraded (Fig. 2).

The mass spectrum significantly differs from the initial spectrum of nicotine solution (Fig. 3a). These differences are likely the result of a high level of nicotine decomposition and they indicate that nicotine undergo transformation to other compounds. However, similarly as in the above-mentioned experiments, the investigated mass spectrum does not have peaks corresponding to nitrosamines. Therefore, there is no risk of their formation during photocatalytic process with TiO2.

Conclusion

Nicotine underwent degradation during photocatalytic process in the presence of TiO2. Identification of degradation products of nicotine, verified by LC-MS/MS analysis, confirmed that 4-(methylnitrosamino)-1-(3-pyridyl)-1-butanone and N-nitroso-nornicotine were not found in samples after their UVa-irradiation. Based on the results from the present study it can be concluded that photocatalytic process in the presence of TiO2 could be also used for the degradation of pollutants containing of nicotine.

Acknowledgements

This research was supported by the National Science Centre Grant funded by the Polish Government (UMO-2011/03/D/NZ7/01684).

References

1.    Adamek, E. Goniewicz, M. Baran,W. Sobczak, A. (2013) “The study on the photocatalytic degradation of nicotine”, Proceedings of ECOpole, 7 187-192.

2.    Baran, W. Makowski A. and Wardas, W. (2003) “The influence of inorganic ions on the photocatalytic degradation of orange II in aqueous solutions”, Environment Protection Engineering, 6 75-85.

3.    Baran, W. Sochacka, J. and Wardas, W. (2006) “Toxicity and biodegradability of sulfonamides and products of their photocatalytic degradation in aqueous solutions”, Chemosphere, 65 1295-1299.
PublisherGoogle Scholar

4.    Bezak-Mazur, E. and Adamczyk, D. (2010) “Adsorption of mixture of two dyes on activated carbon”, Proceedings of ECOpole, 4 307-312.

5.    Carp, O. Huisman, C.L. and Reller, A. (2004) “Photoinduced reactivity of titanium dioxide”, Progress in Solid State Chemistry, 32 33—177.
PublisherGoogle Scholar

6.    Fujishima, A. Zhang, X. and Tryk, D.A. (2008) “TiO2 photocatalysis and related surface phenomena”, Surface Science Reports, 63 515-582.
PublisherGoogle Scholar

7.    Hecht, S.S. Chen, C.B. Ornaf, R.M. Jacobs, E. Adams, J.D. and Hoffmann, D. (1978) “Reaction of nicotine and sodium nitrite: formation of nitrosamines and fragmentation of the pyrrolidine ring”, Journal of Organic Chemistry, 43 72-76.
PublisherGoogle Scholar

8.    Hecht, S.S. Carmella, S.G. Foiles, P.G. Murphy, S.E. and L.A. Peterson, (1993) “Tobacco-specific nitrosamine adducts: studies in laboratory animals and humans”, Environmental Health Perspectives, 99 57-63.
Publisher Google Scholar

9.    Ohtani, B. (2010) “Photocatalysis A to Z-What we know and what we do not know in a scientific sense”, Journal of Photochemistry and Photobiology C: Photochemistry Reviews, 11 157—178.
PublisherGoogle Scholar

10.    Sleiman, M. Gundel, L.A. Pankow, J.F. Jacob III, P. Singer, B.C. and Destaillats, H. (2010)
“Formation of carcinogens indoors by surface-mediated reactions of nicotine with nitrous acid, leading to potential thirdhand smoke hazards”, Proceedings of the National Academy of Sciences of the United States of America, 107 6576-6581.
Publisher Google Scholar
