Versacryl versus Chrome-Cobalt Clasps in Implant- Supported Partial over-Dentures
Download PDF | Download for mobile
Ashraf E. Eskander, Samira I. Ibrahim and Mushira A. Dahaba
Faculty of Oral and Dental Medicine, Cairo University, Egypt
Volume 2014 (2014), Article ID 948300, Journal of Research and Practice in Dentistry, 18 pages, DOI: 10.5171/2014.948300
Received date : 11 November 2013; Accepted date : 4 February 2014; Published date : 27 June 2014
Academic editor: Alan Graham Thomas Payne
Cite this Article as: Ashraf E. Eskander, Samira I. Ibrahim and Mushira A. Dahaba (2014), “Versacryl versus Chrome-Cobalt Clasps in Implant-Supported Partial over-Dentures ", Journal of Research and Practice in Dentistry, Vol. 2014 (2014), Article ID 948300, DOI: 10.5171/2014.948300
Copyright © 2014. Ashraf E. Eskander, Samira I. Ibrahim and Mushira A. Dahaba . Distributed under Creative Commons CC-BY 3.0
This study was conducted to evaluate the effect of the type of clasp assembly used in tooth-implant-supported partial over-dentures on the supporting structures of the abutment and the implant. Fourteen partially edentulous male patients, mandibular Kennedy class II, were selected with #21 or #28 as the last standing tooth. Each patient received a skeleton partial over-denture supported by a single root-form implant in the area of #18 or #31. Patients were divided into two equal groups; group I received an implant-supported partial over-denture with a metallic gingivally approaching retentive arm, while group II received the same denture design but with a thermoelastic resin (Versacryl) gingivally approaching retentive arm. Evaluation of the terminal abutment and the implant was carried out both clinically and radiographically at the time of insertion, six and twelve months later. There was no statistically significant difference (P>0.05) in the gingival index scores or bone height changes in both groups. However, after twelve months, patients of group II showed a statistically significantly lower mean amount of bone loss (Pâ‰¤0.05) compared to those of group I. Similarly, no statistically significant difference (P>0.05) was observed between the mean bone density measurements in both groups after six months. However, after twelve months, patients of group II showed a statistically significant increase in the mean bone density measurements (Pâ‰¤ 0.05) compared to those of group I. The use of thermoelastic clasps was better accepted by the patients. Both, the implants and the abutments reacted more favorably with the use of Versacryl clasps.
Keywords: esthetic clasps, cast clasps, thermoelastic.
Management of partially edentulous patients can still be a prosthodontic challenge. Replacing the missing teeth with conventional removable partial dentures (RPDs) is the traditional method for the treatment of partial edentulism as reported by Chikunov et al (2008).
In determining a proper treatment solution, it is important for the clinician to consider the patient’s aesthetic expectations, socioeconomic situation and the prognosis for the prosthesis and remaining dentition as mentioned by Budtz-Jørgensen et al (2000).
Jivraj and Chee (2006) indicated that the differences in anatomy and biomechanics make treatment of posterior quadrants with dental implants substantially different to that of anterior areas. Without implants, when posterior teeth were lost, treatment options included a long span fixed partial denture or a removable prosthesis, especially when no terminal abutment was available. When teeth are missing, implant-supported restorations can be considered the treatment of choice from the perspective of occlusal support and preservation of adjacent teeth.
Turkyilmaz (2009) found that the lack of adequate support (tooth/soft tissue) results in displacement of unilateral and bilateral distal extension removable partial dentures. Placement of implants is one option for managing this problem. Distal implants may help to prevent displacement of distal extension removable partial dentures, and may be especially suitable for patients who cannot afford implant-supported fixed dental prostheses.
Elsyad and Habib (2011) found that implant-supported partial overdentures appear to be associated with reduced posterior mandibular alveolar ridge resorption. Moreover, Ohkubo et al (2008) recommended the use of a limited number of implants for the support of a removable partial denture (RPD) as they change a Kennedy Class I or II situation to that of a Class III.
In a study by El Mekawy et al (2012), it was found that the implant-supported removable partial dentures (ISRPD) had significantly greater occlusal force and contact area than the conventional removable partial denture (CRPD). The center of occlusal force of the ISRPD tended to move more distally compared to the CRPD. All the patients preferred the ISRPD for comfort, chewing, retention and stability. Therefore, one implant per edentulous area and a simple attachment technique yielded a stable distal extension RPD.
De Freitas et al (2012) reported an increase in patient satisfaction, and high survival rates of implants associated with mandibular removable partial dentures with distal extensions. This treatment approach could represent a low-cost and beneficial rehabilitation for free-end mandibular ridges.
In addition, Kaufmann et al (2009) found that the placement of few implants allows for maintaining a compromised residual dentition for support of RPDs. The combination of root and implant support facilitates treatment planning and enhances designing the removable denture. It also proves to be a practical rescue method.
Minoretti et al (2009) indicated that extraoral implants may also be used successfully to provide support for distal-extension removable partial dentures in severely resorbed posterior alveolar ridges. However, Sykes et al (2002) reported that patients often cite lack of retention and poor esthetics as reasons for not wearing their partial dentures. Traditional metal alloy clasps have been shown to exert forces on abutment teeth that exceed those capable of producing tooth movement. In addition, metal display on anterior teeth is often unacceptable. Furthermore, in a study by Behr et al (2012), a 5-year survival rate of all clasp-retained removable partial dentures showed that fractures most frequently occurred in clasps (16.1%).
Kunwarjeet et al (2012) indicated that removable cast partial dentures are used as definitive removable prostheses when indicated, but location of clasps may affect esthetics. So, when patients are concerned about esthetics, flexible partial dentures which are esthetically superior to flipper and cast partial dentures may be considered. Kaplan (2012) found that the new design potential of the flexible partial denture and its clasp allow for a new treatment approach to the well-established problems of retention, stability and strength. Not only can esthetic clasps removable partial dentures reserve some advantages, that removable partial dentures have such as less preparation and low cost, but they also can bring a metal-free smile to the patients, which is a new effective and affordable treatment option for partial edentulism as reported by Yu and Huang (2012).
Valplast or Flexiplast are super polyamides which belong to the nylon family. Nylon is a resin derived from dicarboxylic acid, diamine, aminoacids and lactin that may be used when the patient is concerned with esthetics as recommended by Singh et al (2013). The main benefit of nylon partial removable dental prostheses (PRDP) is the absence of a metal framework, providing improved aesthetics. In addition, polyamide denture base resins are thought to offer some advantages for patients who are allergic to heat-polymerized poly-methyl methacrylate (PMMA) resin. Unfortunately, the lack of a traditional framework reduces the rigidity and support of occlusal rests as reported by Hamanaka et al (2011).
Sykes et al (2002) found that the technopolymer materials (thermoelastic resins) have superior flexibility, and exert less force than the metals. The technopolymer clasps were up to ten times as flexible as the metal clasps, and they returned to their pretest dimensions after being stretched. In addition, they exerted forces on the abutment teeth that fall within the range of those considered safe for use. This coupled with their pleasing esthetics makes them suitable for use on periodontally compromised teeth, those with deep undercuts and on anterior teeth. Therefore, thermoelastic resin clasps have been used for esthetic denture rehabilitation as recommended by Osada et al (2013). A question now arises: does the type of clasp assembly used on the terminal abutment in tooth-implant-supported partial over-dentures have an effect on the supporting structures of the implant and the abutment?
This study was conducted to compare between the effects of thermoelastic (Versacryl) versus chrome-cobalt retentive clasp arms on the supporting structures of the implant, and the abutment in implant-supported partial over-dentures, both clinically and radiographically.
Materials and Methods
Fourteen partially edentulous male patients, ranging from 34 to 48 years were selected for this study, with an average age of 42 years. Only male patients were selected to avoid any hormonal effect on the bone changes. All patients had a Kennedy Class II mandibular arch, with #21 or #28 as the last standing tooth and an intact opposing arch. Patients were free from any systemic or debilitating disease that may affect the bone quality or the post-operative healing, and osseointegration of the dental implant. All patients had an adequate inter-arch space, good oral hygiene and were non-smokers. Patients with temporomandibular joint disorders, grinding or bruxing habits and deep bite were excluded. The patients were informed about the nature of this research and their verbal consents were obtained.
All patients received a lower partial over-denture supported by a single root-form implant* (10mm in length and 3.7mm in diameter) placed in the area of #18 or #31. Patients were divided into two equal groups, each of seven patients. Grouping was done randomly by coin flipping method. Patients of group I received an implant-supported skeleton partial over-denture, with a metallic gingivally approaching retentive arm on the terminal abutment. Patients of group II received the same partial over-denture design as group I, with a thermoelastic resin (Versacryl)ï€ªï€ª gingivally approaching retentive arm on the terminal abutment.
In the first surgical phase, the implant was installed in its proposed site, the cover screw was secured to the implant and the muco-periosteal flap was repositioned and sutured. At the time of second surgical phase (after three months), the implants were exposed, the cover screws were removed and replaced by a healing abutment of suitable length that was replaced ten days later by a ball abutment*** of a suitable height (Fig. 1).
Removable partial over-denture framework construction
The evaluation of the supporting structures of the terminal abutment and the implant was carried out both clinically and radiographically at the time of prosthesis insertion, six and twelve months later
a) Clinical evaluation
i) Patient satisfaction
Patients’ satisfaction with their prostheses was evaluated by means of a questionnaire developed in consideration of the most important aspects used to evaluate the prosthesis including esthetics, function, retention, stability and comfort. Patients were asked to rank each prosthesis from 1-3: not satisfied (1), satisfied (2), highly satisfied (3).
ii) The Gingival Index Scores (GI)
The Gingival Index Scores were recorded around the buccal, distal and lingual surfaces of the terminal abutment. The gingival tissues around the abutment were isolated and gently dried by a piece of gauze, and then each surface was individually scored according to the Gingival Index Scores (Loe and Silness, 1963). The mean of the three surfaces was calculated.
iii) Evaluation of the implant stability
The Evaluation of the implant stability was done using the Osstell device* which measures the implant stability as an implant stability quotient (ISQ). Readings of 65 and above denote successful osseointegration, while readings below 65 denote failure osseointegration. The evaluation was carried out at the time of prosthesis insertion and twelve months later. The healing abutment was removed, and then the smart-peg** which coincides with the implant was screwed to it. The tip of the device was placed on each surface of the smart-peg, and the readings were recorded (Figs. 4,5) following the manufacturer’s instructions. Then, the smart-peg was removed and the ball abutment was secured again to the implant. After twelve months, the bone abutment was unscrewed, the smart peg was secured to the implant and the data of the ISQ were recorded.
b) Radiographic evaluation
Marginal bone height measurements and densitometric measurements were carried out distal to the terminal abutment and mesial, and distal to the implant using direct digital radiography *.
Rinn-XCP** periapical film holder, individually constructed radiographic templates, and long cone paralleling technique were used for the standardization of digital images (Fig. 6). A digital X-ray machine*** with a long cone, sixteen inches in length was used. The imaging plate was exposed by the X-ray machine at 70-kilovolt and 10-milliamperes, for 0.06 seconds. These procedures were carried out to standardize the acquisition of radiographic images in the different study periods for each abutment and implant.
i) Marginal bone height measurements
The linear measurement system supplied by the special soft-ware of the Digora was used to assess the marginal bone height distal to the abutment and mesial, and distal to the implant along the follow-up periods. A line was drawn from the top of the abutment to its apex to calibrate the abutment length in the subsequent radiographs before measurements, and the same was done for the implant. This calibration ensured the standardization of all radiographic images along the follow-up period. After calibration, standardization of the measurements of the marginal bone height required that three lines were drawn, the first line passing tangential to the top of the implant, and two perpendicular lines passing parallel along the mesial and distal aspect of the implant (Fig.7). Another tangential line was drawn for the abutment, and a perpendicular line was drawn parallel along the distal aspect of the abutment. All perpendicular lines were drawn from a fixed point at the tangential line, and descending perpendicular toward the highest level of the alveolar bone. The distance recorded along these perpendicular lines was measured to record the alveolar bone changes; any increase in this distance denoted alveolar bone resorption.
ii) Bone density measurements (densitometric analysis)
Using the Digora software, three successive lines were drawn parallel and distal to the root of the terminal abutment. The first line extended from the cemento-enamel junction to the root apex, the second line was drawn parallel and equal to the first line and 1 mm apart from it, while the third line was drawn parallel and 1 mm apart from the second one. Then, the mean value of the three readings was calculated. For the implant, three successive lines (mesial and distal to each implant) were drawn extending from the first flute of the implant to its apex, and the mean value of the readings was calculated (Fig.8).
All patients in the two studied groups attended the whole follow-up period.
I) Clinical evaluation
1) Patient satisfaction
All patients in both groups were satisfied with their prostheses regarding stability and function. However, patients of group II were highly satisfied with the better esthetics and increased retention of the Versacryl clasps.
2) The Mean Gingival Index Scores for the abutments in both groups
The mean gingival index scores for the abutments in group I were 0.4, 0.6 and 1.0 at the time of prosthesis insertion, six and twelve months later respectively. However, for group II, the mean gingival index scores for the abutments were 0.5, 0.6 and 0.8 respectively. Comparison between the mean gingival index scores in both groups revealed no statistically significant difference (P>0.05) between both groups along the study period (Table 1, Fig.9).
3) Evaluation of implant stability
In each group, no statistically significant change (P>0.05) was observed in the mean difference in the values of the Osstell readings for the implants after twelve months of prosthesis insertion (Table 2, Fig. 10).
the implants in both groups
II) Radiographic evaluation
1) Marginal bone height measurements in both groups
The mean marginal bone height measurements were recorded digitally. These vertical measurements represented the bone level distal to the terminal abutment and mesial, and distal to the implant, so that any increase in these measurements along the successive follow-up periods denoted bone resorption.
a) For the abutments

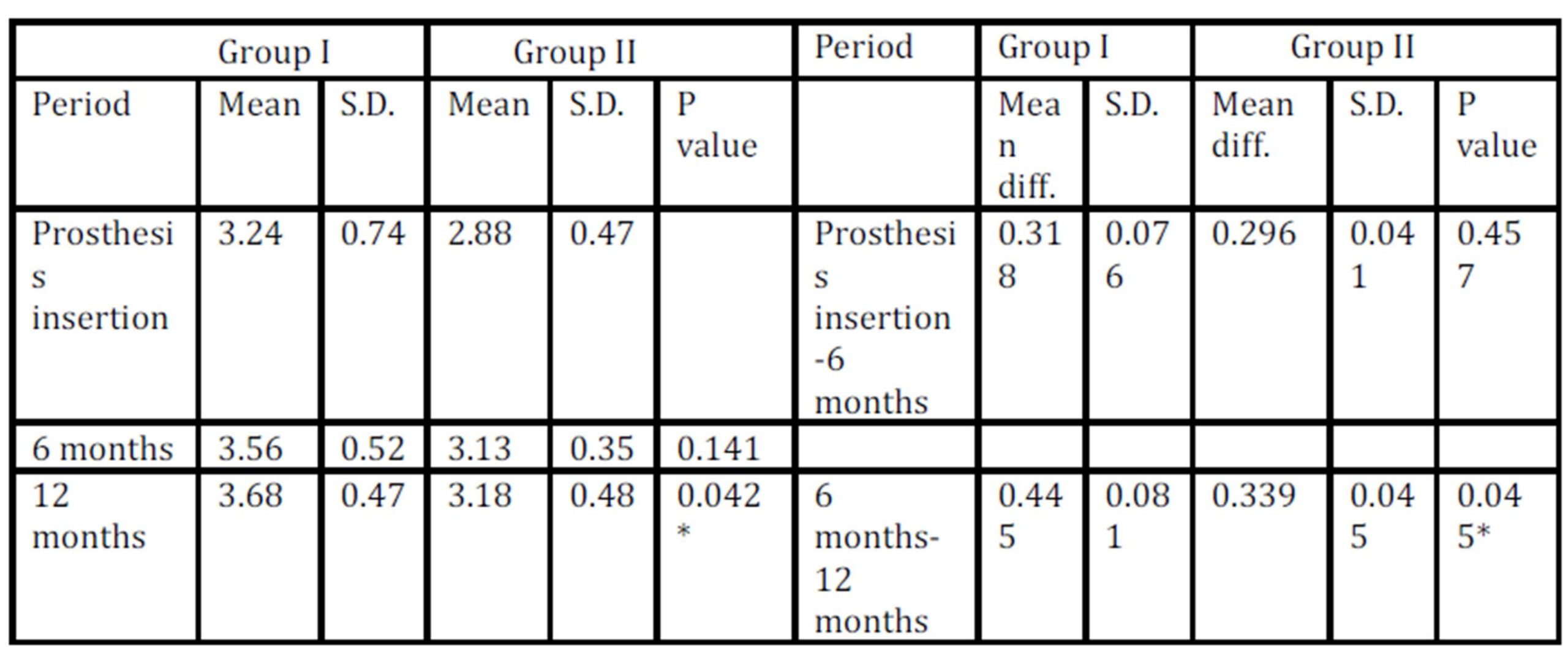

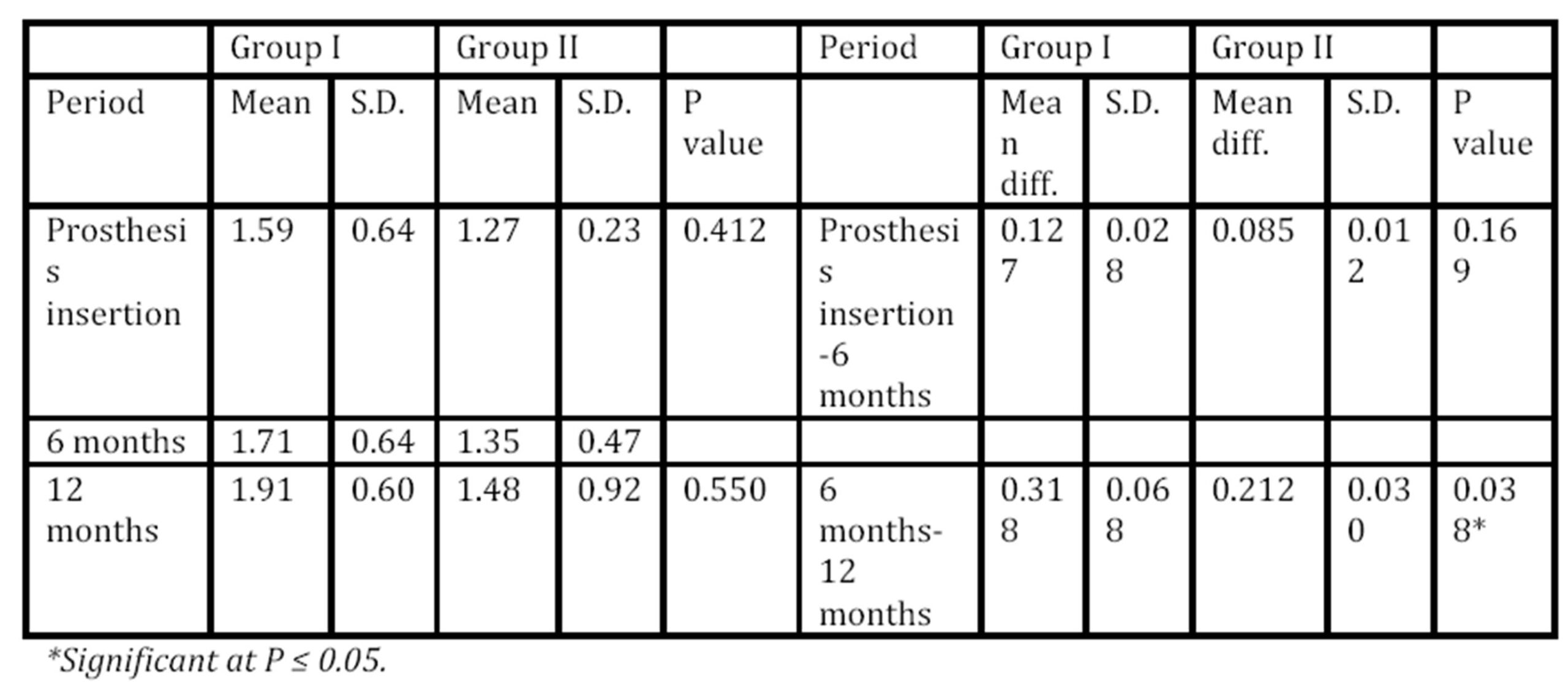

The mean marginal bone height measurements for group I were 3.24, 3.56 and 3.68mm at the time of prosthesis insertion, six and twelve months later respectively. However, for group II, the mean marginal bone height measurements were 2.88, 3.13 and 3.18 mm respectively. The comparison between the amount of bone height changes in both groups revealed no statistically significant difference (P>0.05) between the amount of bone loss in both groups after six months. However, after twelve months, patients of group II (the Versacryl clasp group) showed a statistically significantlower mean amount of bone loss (Pâ‰¤0.05) than those of group I (the metal clasp group) (Table 3, Fig.11).
a) For the abutments
The mean values of the bone density measurements for the abutments in group I were 107.1, 110.9 and 116.7 at the time of prosthesis insertion, six and twelve months later respectively. However, for group II, the mean bone density measurements were 120.1, 126.4 and 138.8 respectively. The comparison between the amount of bone density changes in both groups revealed no statistically significant difference (P>0.05) between the mean bone density measurements in both groups after six months. However, after twelve months, patients of group II (the Versacryl clasp group) showed a statistically significant increase in the mean bone density measurements (Pâ‰¤0.05) compared to those of group I ( the metal clasp group) (Table 5, Fig.13).
The percentage change was calculated as follows:
Density (after) — Density (base line) x 100
Density (base line)
It has to be noted that the placement of an implant in the posterior region in distal extension cases, to support a removable partial over-denture because of financial or anatomic limitations may be more suitable in such cases, instead of making a tooth — implant supported fixed restoration or even the placement of another implant and construction of a totally implant-supported fixed restoration. This could be attributed to the fact that implant placement in distal extension cases provides a positive distal support that minimizes load transmission to the edentulous ridge reducing its resorption, as well as providing a stable partial over-denture improving its efficiency. Besides, the placement of a ball implant abutment with its retentive clip simplifies the design of the partial over-denture as it eliminates the need for an indirect retainer.
A nylon removable partial denture (Valplast) provides improved esthetics as it has no metal framework or occlusal rest. However, nylon removable partial dentures are contraindicated in Class II cases, as they lack the basic elements of traditional removable partial dentures such as rigid connectors and occlusal rests. Another negative aspect of using the polyamide base resin is its surface roughness, and difficulty in polishing leading to bacterial and fungal colonization on its surface as was reported by Ito (2013).
On the other hand, technopolymer materials, like thermoelastic resins (Versacryl) have viscoelastic properties. They are prepared to have superior flexibility, which is about ten times as flexible as the metal clasps, and they return to their preset dimensions after being stretched. Therefore, the use of esthetic clasps in removable partial dentures can bring a metal-free smile to the patient as was recommended by Yu and Huang (2012).
Thermoelastic resins can be mixed in different softener/hardener monomer ratios to have different viscoelastic properties according to its application as indicated by Moussa et al (2012).
The present study revealed superior results regarding the amount of bone loss, density and gingival condition around the terminal abutment, and implant with the use of the thermoelastic resin (Versacryl) clasp. Besides, this type of clasp arm can be easily adjusted by just putting it in warm water which gives confidence and comfort to the patient, unlike the metal clasp arm. Another important advantage of the Versacryl clasp is that, if broken, it can be easily replaced, as it chemically bonds to the old acrylic resin. In addition, thermoelastic resin clasps are also very hygienic and do not easily stain as they are non-porous and easily cleaned preventing the adherence of debris to the clasp.
From the results of the present study, it can be concluded that:
1) The use of the thermoelastic (Versacryl) clasp, with its superior properties, is better accepted by the patients, regarding esthetics, retention and efficiency.
2) Both the implants and the abutment teeth reacted more favorably with the use of Versacryl clasps
